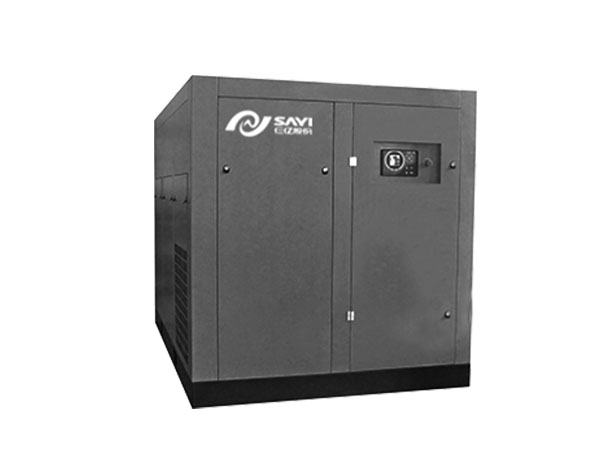

Low pressure two stage screw air compressor

Product parameter

low pressure double class screw air compressor
model	power(KW)	pressure(bar)	capacity(m3/min)	startup mode	outlet size	dimension(LxWxH)mm	weight (kg)
DMF45-5II	45	5	11.5	Permanent Magnet Frequency	DN65	2500x1600x1740	2300
DMF55-5II	55	5	14.7		DN65	2500x1600x1740	2400
DMF75-5II	75	5	19.2		DN80	2850x1800x1912	3450
DMF90-5II	90	5	24.2		DN80	2850x1800x1912	3500
DMF110-5II	110	5	27.2		DN100	3440x2000x2320	4300
DMF132-5II	132	5	32.5		DN100	3440x2000x2320	4400
DMF150-5II	150	5	38		DN125	3720x2363x2382	7200
DMF160-5II	160	5	40.7		DN125	3720x2363x2382	7250
DMF170-5II	170	5	44		DN125	3720x2363x2382	7300
DMF185-5II	185	5	46.9		DN125	3720x2363x2382	7400
DMF200-5II	200	5	50.6		DN125	3720x2363x2382	7450
DMF220-5II	220	5	56.5	High frequency conversion	DN150	4400x2350x2430	8600
DMF250-5II	250	5	65	High frequency conversion	DN150	4400x2350x2430	8600

capacity ：11.5-65m3/min
pressure：4-5bar
power：45-250kw
startup mode：Permanent Magnet Frequency

Performance characteristics
1.exceeds energy efficiency at the national level by 1 to 10 per cent;
2.Centrifugal fan low speed, low noise, large wind pressure;
3.Main motor permanent magnet and fan motor permanent magnet dual frequency conversion to achieve maximum energy-saving effect;
4.Motor and electric gas cabinet independent air duct, cooling effect is better;
5.45℃ High temperature design to ensure the normal operation of the machine at high temperature;
5 000 h. service life for lubricants and oils
